High digital technology power of
DAP will lead the world

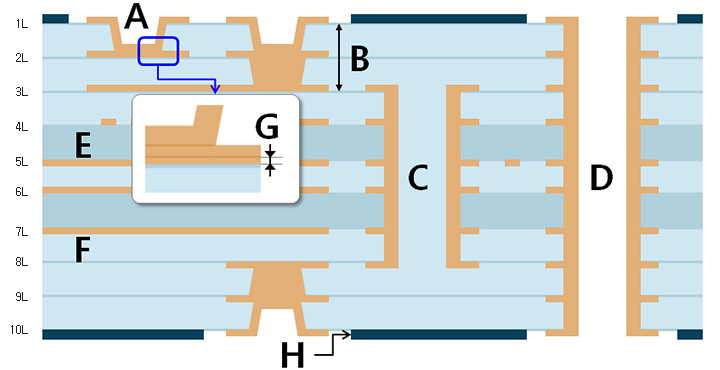

HDI PCB Structure

A. LVH (Laser Via Hole)

B. Stacked Via

C. BVH (Buried Via Hole)

D. PTH (Plated Through Hole)

E. CCL (Copper Clad Laminate)

F. P/P (Prepreg)

G. C/F (Copper Foil)

H. S/R Ink (Solder Resist Ink)



Any Layer

Structure Cross Section
  • Specification
Type Material Board Thickness Min Line Space
All Stack Via FR-4 0.65~1.0T (±10%) 0.03/0.04

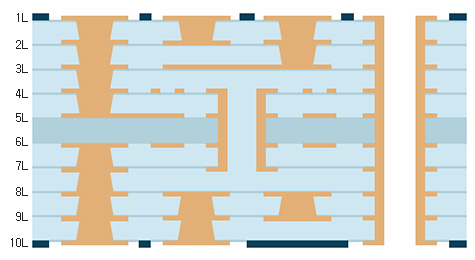

4D Type

Structure Cross Section
  • Specification
Layer Count Material Board Thickness Min Line Space
10 Layer FR-4 0.65~1.0T(±10%) 0.04/0.04

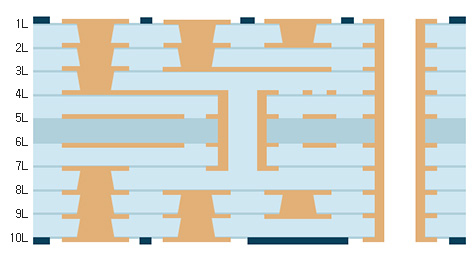

3D Type

Structure Cross Section
  • Specification
Layer Count Material Board Thickness Min Line Space
10 Layer FR-4 0.6~1.0T(±10%) 0.04/0.04, 0.04/0.085

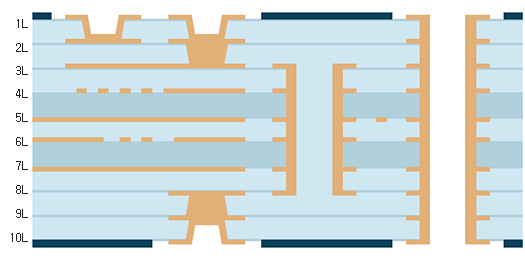

D Type

Structure Cross Section
  • Specification
Layer Count Material Board Thickness Min Line Space
10 Layer FR-4 0.8T 0.04/0.04, 0.05/0.05

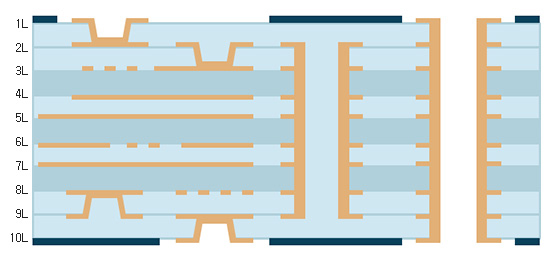

C Type

Structure Cross Section
  • Specification
Layer Count Material Board Thickness Min Line Space
10 Layer FR-4 0.65~0.8T 0.04/0.04, 0.05/0.05

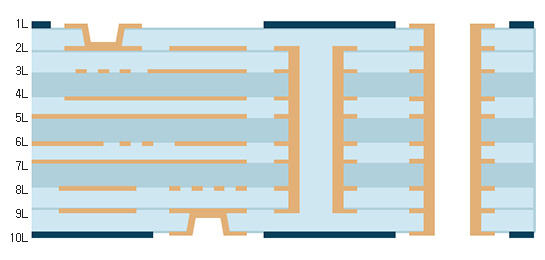

B Type

Structure Cross Section
  • Specification
Layer Count Material Board Thickness Min Line Space
10 Layer FR-4 0.65~0.8T 0.04/0.08, 0.05/0.05

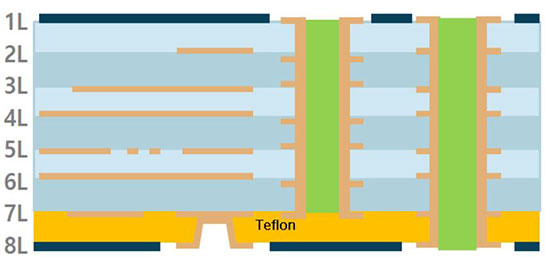

BVH Type

Structure Cross Section
  • Specification
Layer Count Material Board Thickness Min Line Space
8 Layer FR-4, Teflon 0.9~1.1T 0.12/0.15
